How I started out with the truck and end up tearing all up on it. (What a waste of a good truck)
This was a truck that I should have waited until they came out with the SS18
kit to get, as I ended up rebuilding
or replacing just about everything on the truck. I tried to make it like the
Savage truck I drive, as I like the way it
handles and it is easy to drive.
This is my Winter 2004 Project truck to run in the 2005 season, so I am in no
hurry on it, as I have been in the past
(Click on the pics below to make them large)

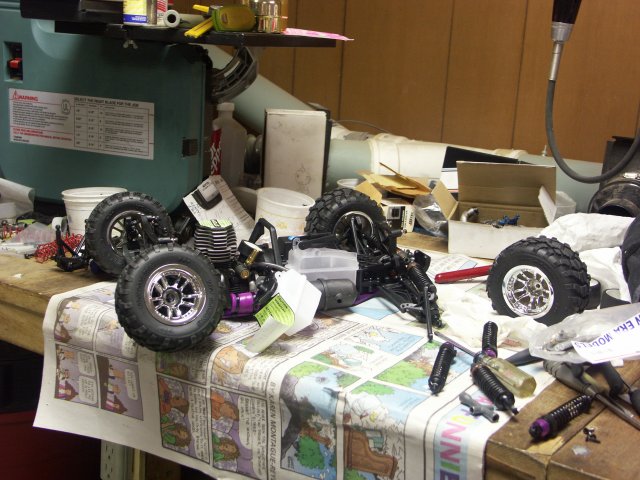

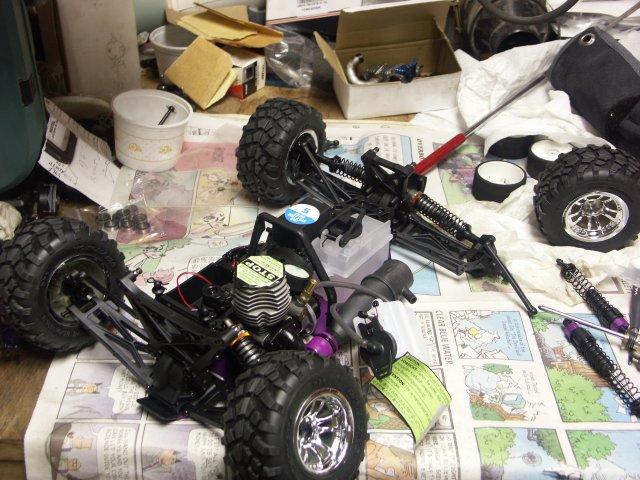

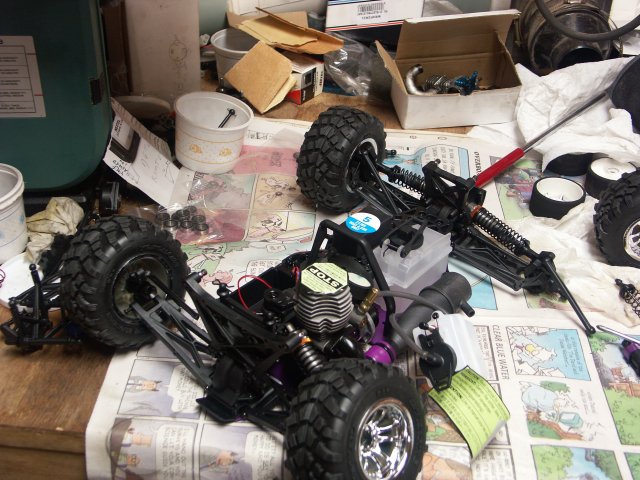

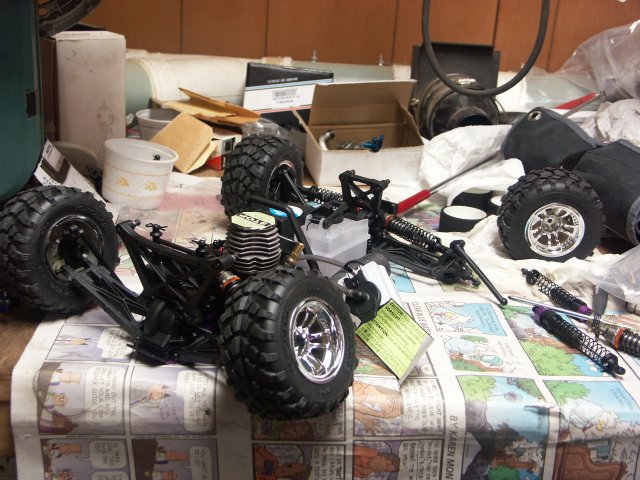

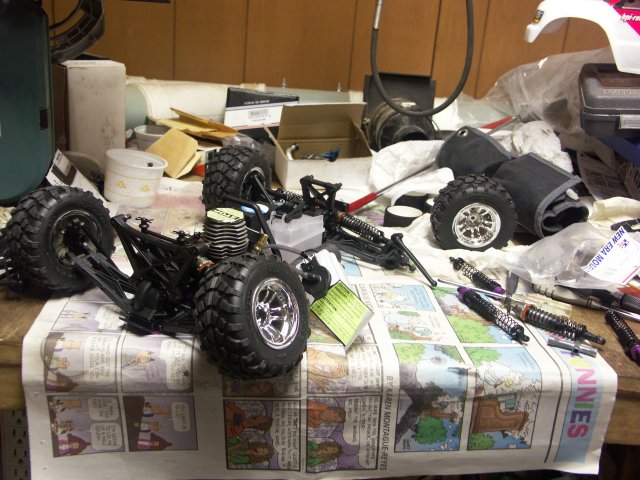

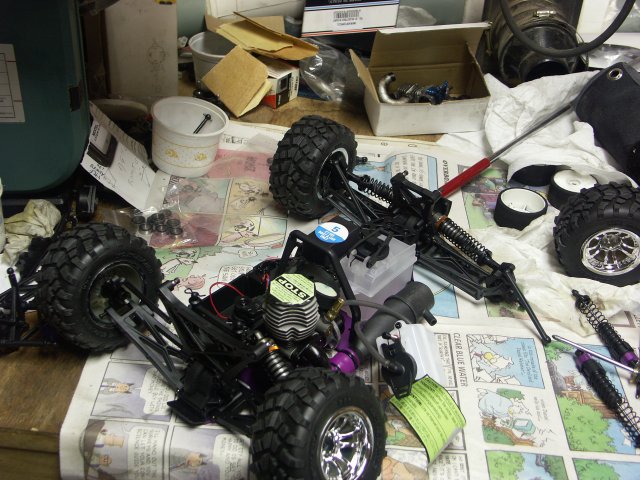

The Beginning of the truck and tearing ALL up on it.
How I started out with the truck and end up tearing all up on it. (What a waste
of a good truck)

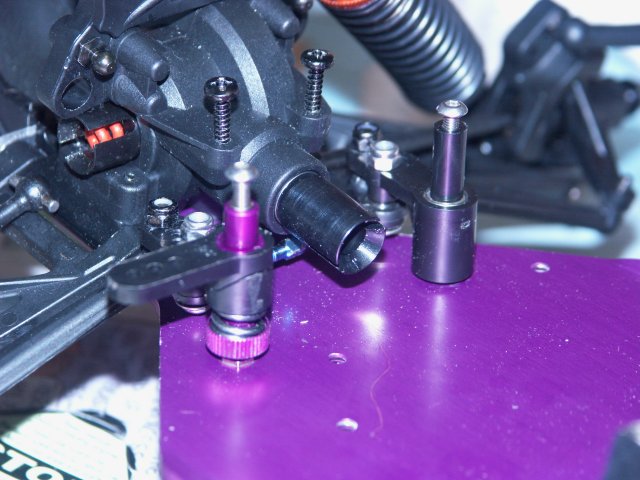

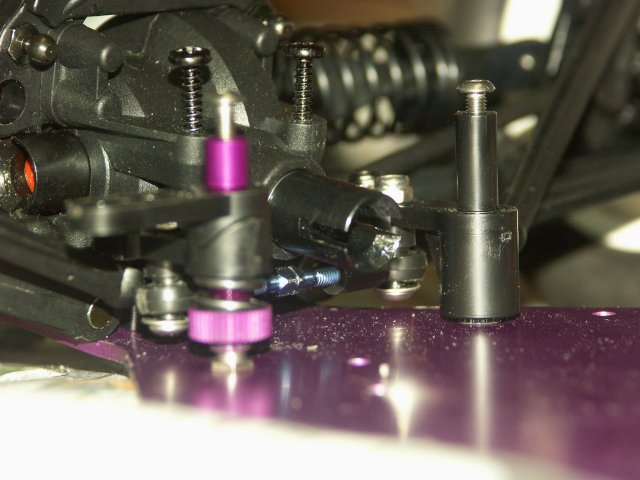

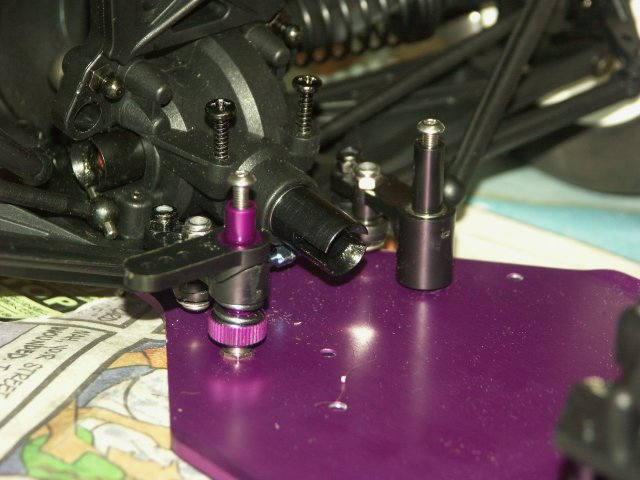

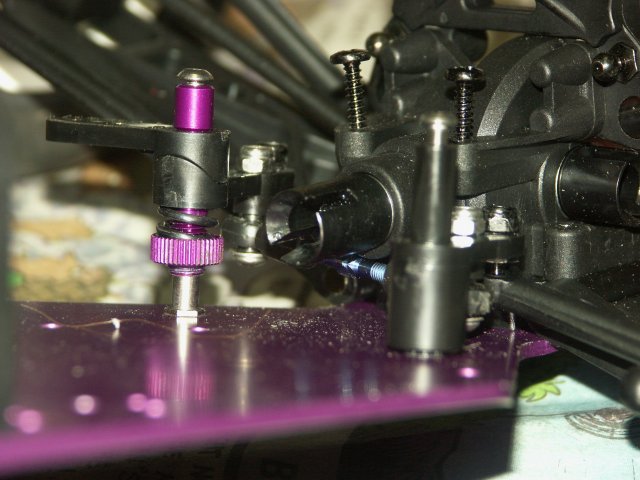

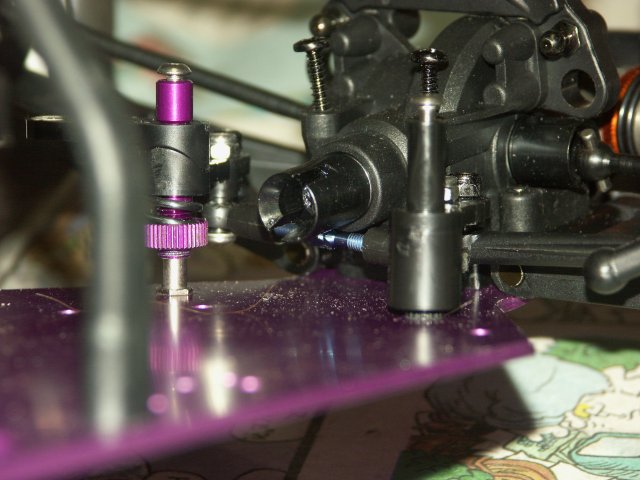

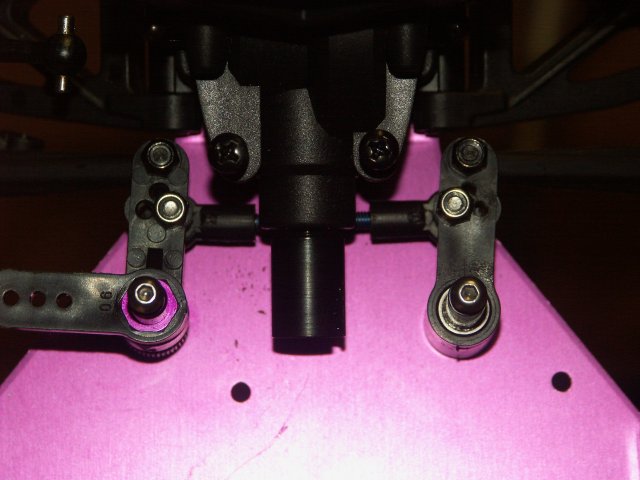

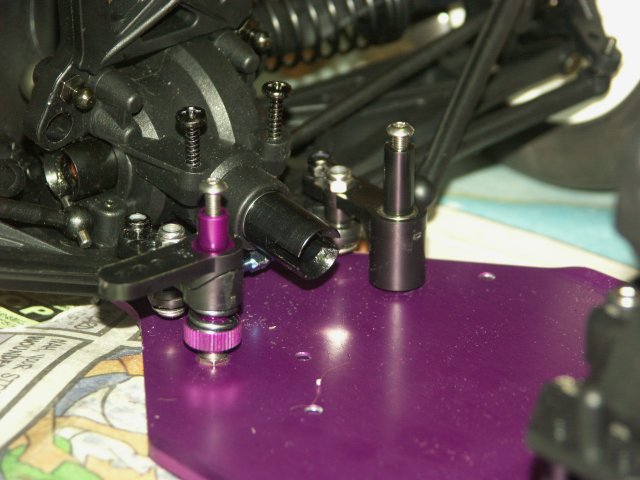

Steering link Mods
I didn't like the standard steering setup, as it has no built in servo saver
like many trucks, or buggies use.
I ended up making this out of different HPI kits and it is adjustable with the
spring, so you don't have to use
a servo saver on the servo, as I have found these to be WAY too weak

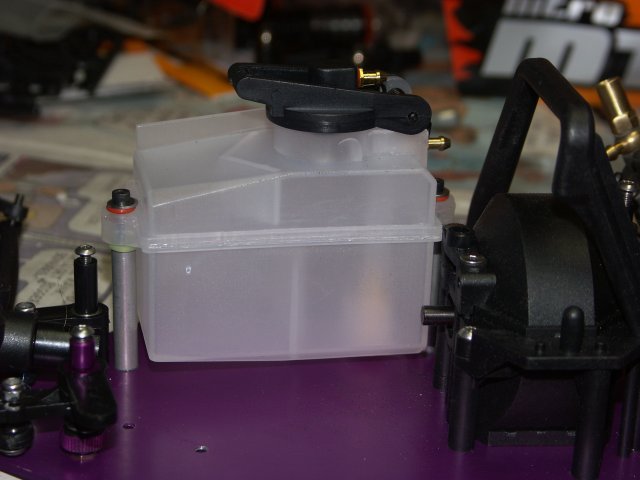

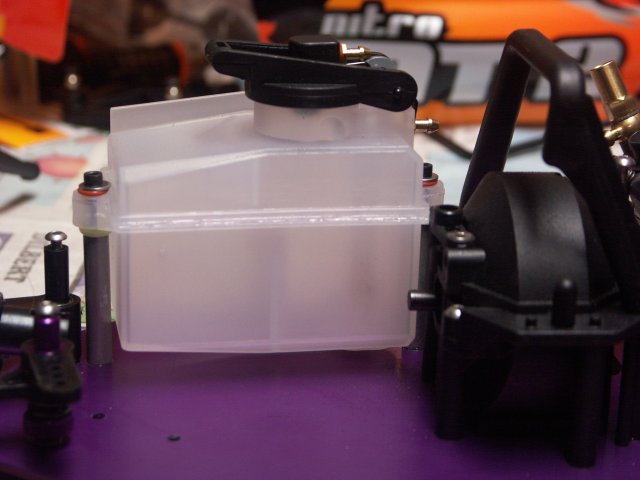

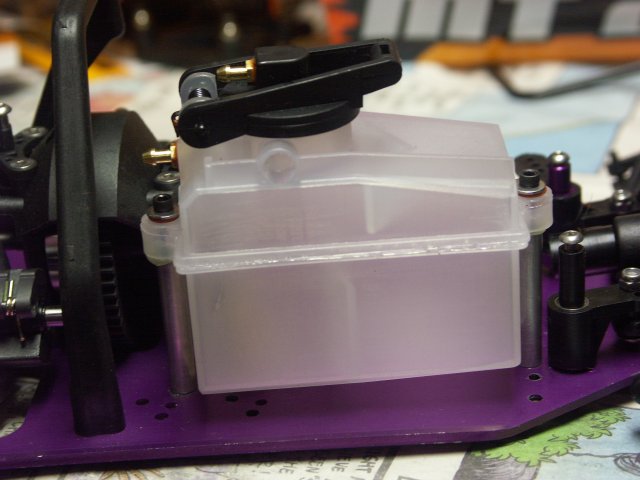

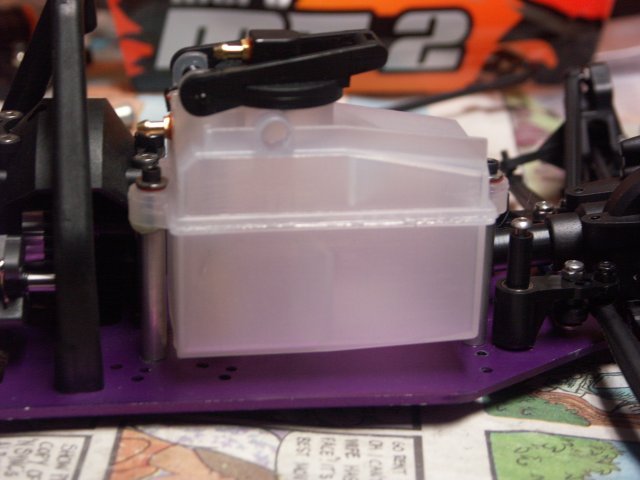

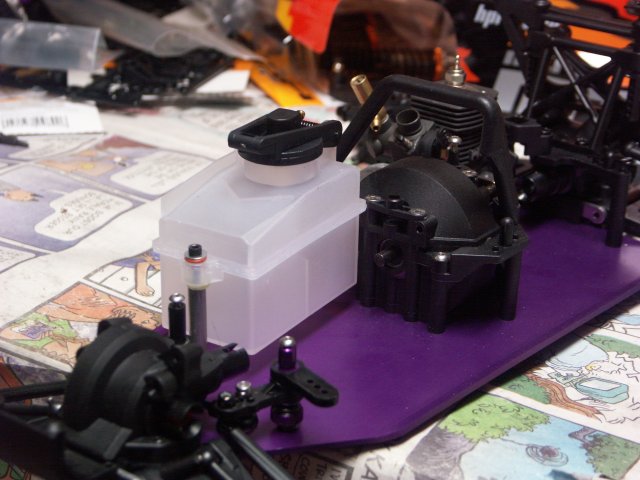

Fuel Tank Mods
I ended up using a Ofna Tank on the truck, as I have had good luck with them
before and it gave it a little
more fuel capacity. Had to move all around on the chassis for it to fit and
grind a few things away.

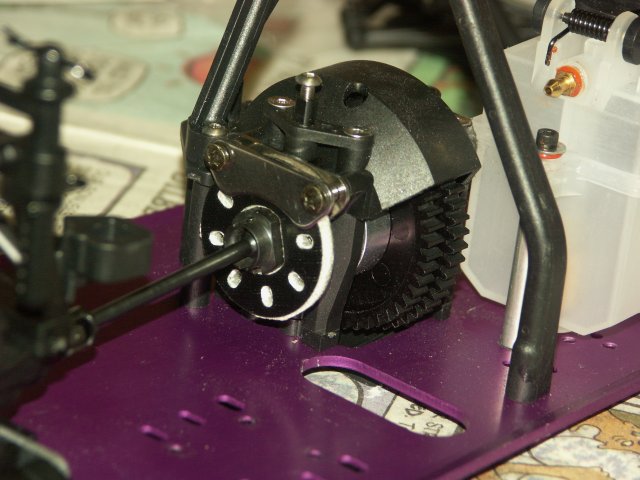

2 Speed Transmission

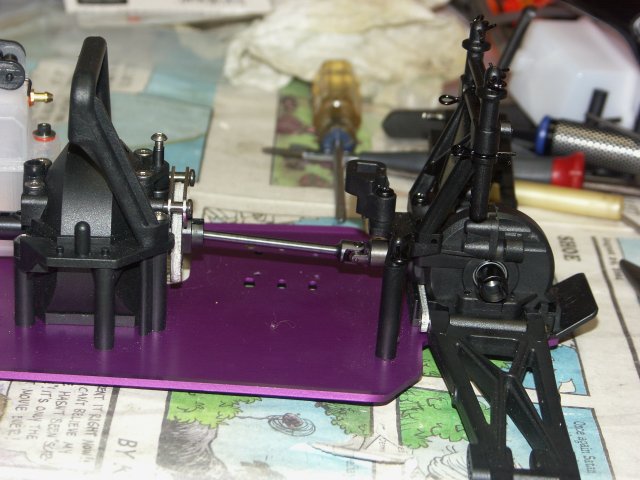

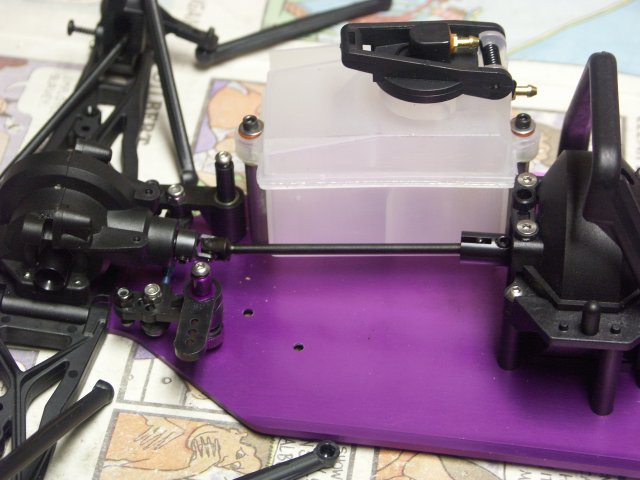

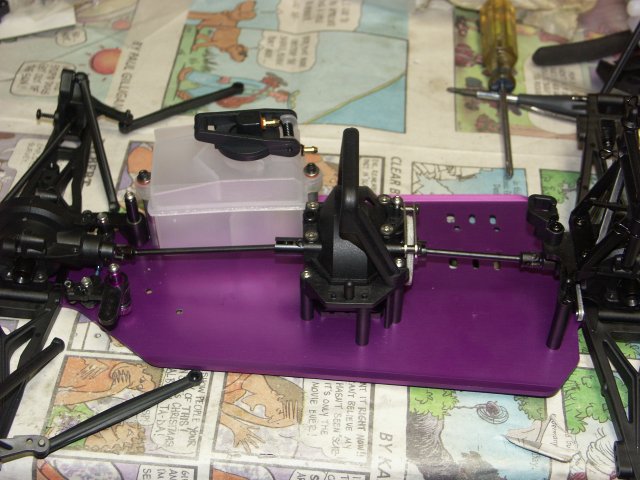

Drive Train Mods
I put all the hardened gears in the front and rear diffs, and shimmed all up and
used "O" Rings so I could use
rear end fluids rather then using grease.
I do have to say this is a expensive mod, as you have to change ALL to the old
MT trucks, as the MT2 uses
larger driveshafts and the dogbones are a little large where they go into the
ends.
Installed are driveshafts with CVDs, and took the dog bones out.

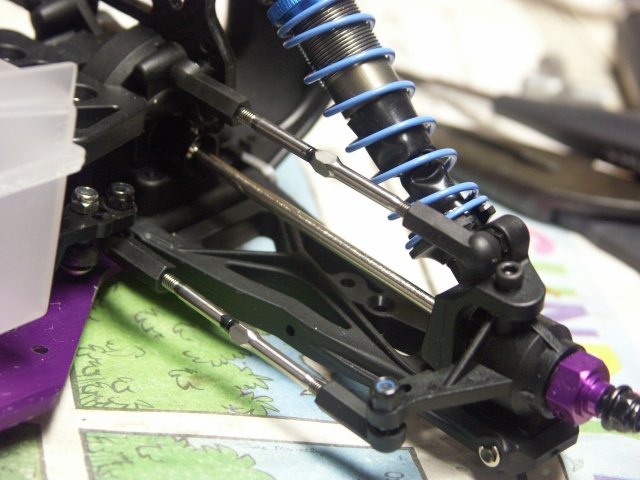

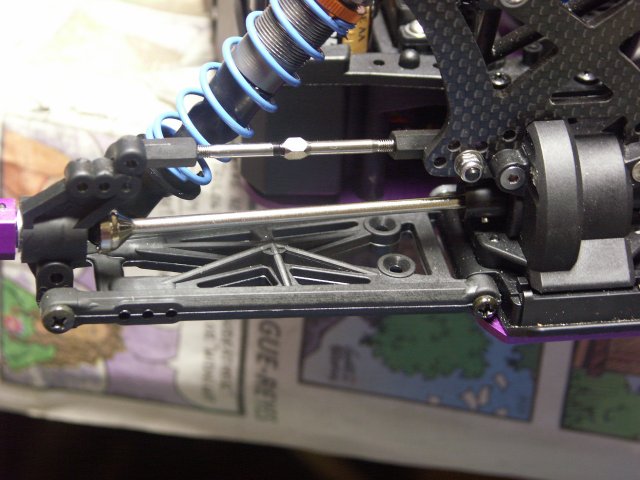

A-Arms and CV shafts
All of the dog bones have been replaced and went with CV joints to try to free
things up some.
Engine
Engine is a stock 15 with little power
Servos and linkages
I made up linkages to help the throttle and brake be a little more responsive.
Used a HiTec 5625 Servo for the Steering and Brake

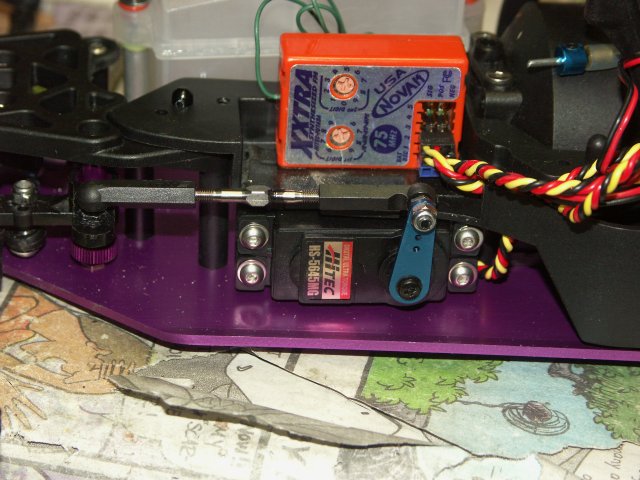

Steering Servo and Receiver
I went with the same receiver I have been running in all of my other trucks and
a few cars, as it works well.
Have a HiTec 5645 Digital Servo for the Steering
